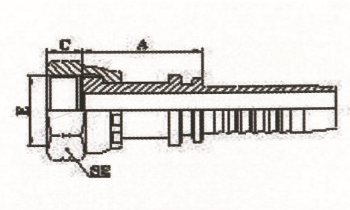

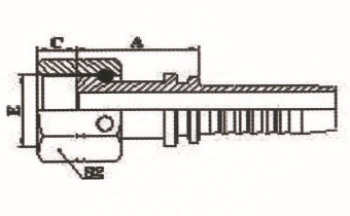

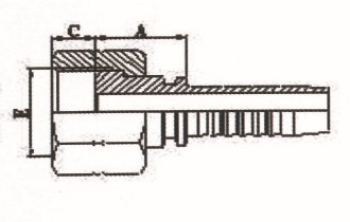

| 代 号 | 螺纹E | 软 管 | 尺 寸 | |||
| 公称内径 | 标 号 | A | C | S2 | ||
| 26791-04-04 | 9/16”X18 | 6 | 04 | 25.5 | 8.5 | 19 |
| 26791-04-05 | 9/16”X18 | 8 | 05 | 22.5 | 8.5 | 19 |
| 26791-04-06 | 9/16”X18 | 10 | 06 | 22.5 | 8.5 | 19 |
| 26791-06-04T | 11/16”X16 | 6 | 04 | 23.5 | 10 | 22 |
| 26791-06-05T | 11/16”X16 | 8 | 05 | 23.5 | 10 | 22 |
| 26791-06-06 | 11/16”X16 | 10 | 06 | 26.5 | 10 | 22 |
| 26791-06-08 | 11/16”X16 | 12 | 08 | 26 | 10 | 22 |
| 26791-08-05T | 13/16”X16 | 8 | 05 | 25 | 11 | 27 |
| 26791-08-06T | 13/16”X16 | 10 | 06 | 24.5 | 11 | 27 |
| 26791-08-08 | 13/16”X16 | 12 | 08 | 28 | 11 | 27 |
| 26791-08-10 | 13/16”X16 | 16 | 10 | 29 | 11 | 27 |
| 26791-10-08T | 1”X14 | 12 | 08 | 29 | 13.5 | 30 |
| 26791-10-10 | 1”X14 | 16 | 10 | 34 | 13.5 | 30 |
| 26791-10-12 | 1”X14 | 20 | 12 | 34 | 13.5 | 30 |
| 26791-12-08T | 1.3/16”X12 | 12 | 08 | 30.5 | 15 | 36 |
| 26791-12-10T | 1.3/16”X12 | 16 | 10 | 32.5 | 15 | 36 |
| 26791-12-12 | 1.3/16”X12 | 20 | 12 | 36.5 | 15 | 36 |
| 26791-12-16 | 1.3/16”X12 | 25 | 16 | 36 | 15 | 36 |
| 26791-16-12T | 1.7/16”X12 | 20 | 12 | 32.5 | 14.8 | 41 |
| 26791-16-14T | 1.7/16”X12 | 22 | 14 | 35 | 14.8 | 41 |
| 26791-16-16T | 1.7/16”X12 | 25 | 16 | 34.3 | 14.8 | 41 |
| 26791-16-20 | 1.7/16”X12 | 32 | 20 | 39.5 | 14.8 | 41 |
| 26791-20-16T | 1.11/16”X12 | 25 | 16 | 34.5 | 15 | 50 |
| 26791-20-20W | 1.11/16”X12 | 32 | 20 | 42.5 | 15 | 50 |
| 26791-20-24W | 1.11/16”X12 | 40 | 24 | 42.5 | 15 | 50 |
| 26791-24-20T | 2”X12 | 32 | 20 | 36 | 14.8 | 60 |
| 26791-24-24T | 2”X12 | 40 | 24 | 37.2 | 14.8 | 60 |
| 注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为24212-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 24212-XX-XX. |
||||||
