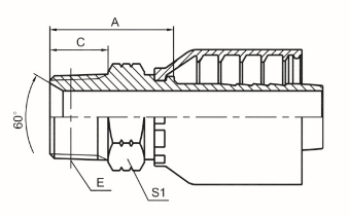

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 尺寸 DIMENSIONS | ||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | A | C | S1 |
| 15611-02-04RW | -- | Z1/8”X27 | 6 | 04 | 22.5 | 10.5 | 12 |
| 15611-04-04RW | -- | Z1/4”X18 | 6 | 04 | 27 | 15 | 17 |
| 15611-04-05RW | -- | Z1/4”X18 | 8 | 05 | 27 | 15 | 17 |
| 15611-04-06RW | -- | Z1/4”X18 | 10 | 06 | 26.5 | 15 | 17 |
| 15611-06-04RW | -- | Z3/8”X18 | 6 | 04 | 28 | 16 | 19 |
| 15611-06-05RW | -- | Z3/8”X18 | 8 | 05 | 28 | 16 | 19 |
| 15611-06-06RW | -- | Z3/8”X18 | 10 | 06 | 27.5 | 16 | 19 |
| 15611-06-08RW | 15611-06-08RW | Z3/8”X18 | 12 | 08 | 28.5 | 16 | 19 |
| 15611-08-06RW | -- | Z1/2”X14 | 10 | 06 | 33 | 19.5 | 22 |
| 15611-08-08RW | 15611-08-08RW | Z1/2”X14 | 12 | 08 | 34 | 19.5 | 22 |
| 15611-08-10RW | 15611-08-10RW | Z1/2”X14 | 16 | 10 | 34.5 | 19.5 | 22 |
| 15611-12-08RW | 15611-12-08RW | Z3/4”X14 | 12 | 08 | 36 | 19.5 | 27 |
| 15611-12-10RW | 15611-12-10RW | Z3/4”X14 | 16 | 10 | 36.5 | 19.5 | 27 |
| 15611-12-12RW | 15611-12-12RW | Z3/4”X14 | 20 | 12 | 35.5 | 19.5 | 27 |
| 15611-12-16RW | 15611-12-16RW | Z3/4”X14 | 25 | 16 | 39.7 | 19.5 | 32 |
| 15611-16-10RW | 15611-16-10RW | Z1”X11.5 | 16 | 10 | 43.5 | 25.5 | 36 |
| 15611-16-12RW | 15611-16-12RW | Z1”X11.5 | 20 | 12 | 42.5 | 25.5 | 36 |
| 15611-16-16RW | 15611-16-16RW | Z1”X11.5 | 25 | 16 | 45.7 | 25.5 | 36 |
| 15611-20-16RW | 15611-20-16RW | Z1.1/4”X11.5 | 25 | 16 | 48.7 | 26.5 | 46 |
| 15611-20-20RW | 15611-20-20RW | Z1.1/4”X11.5 | 32 | 20 | 48.7 | 26.5 | 46 |
| 15611-24-24RW | 15611-20-24RW | Z1.1/2”X11.5 | 40 | 24 | 52.5 | 27.5 | 50 |
| 15611-32-32RW | 15611-32-32RW | Z2”X11.5 | 50 | 32 | 58 | 27.5 | 65 |
