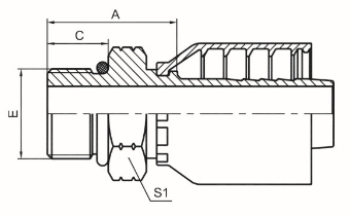

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | O形圈 | 尺寸 DIMENSIONS | ||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | RING | A | C | S1 |
| 16011-04-04RW | -- | 7/16”X20 | 6 | 04 | O904 | 21.1 | 9.1 | 14 |
| 16011-05-04RW | -- | 1/2”X20 | 6 | 04 | O905 | 21.1 | 9.1 | 17 |
| 16011-06-05RW | -- | 9/16”X18 | 8 | 05 | O906 | 21.9 | 9.9 | 17 |
| 16011-06-06RW | -- | 9/16”X18 | 10 | 06 | O906 | 21.4 | 9.9 | 17 |
| 16011-08-06RW | -- | 3/4”X16 | 10 | 06 | O908 | 24.6 | 11.1 | 22 |
| 16011-08-08RW | 16012-08-08RW | 3/4”X16 | 12 | 08 | O908 | 25.6 | 11.1 | 22 |
| 16011-10-08RW | 16012-10-08RW | 7/8”X14 | 12 | 08 | O910 | 29.2 | 12.7 | 27 |
| 16011-10-10RW | 16012-10-10RW | 7/8”X14 | 16 | 10 | O910 | 29.7 | 12.7 | 27 |
| 16011-12-10RW | 16012-12-10RW | 1.1/16”X12 | 16 | 10 | O912 | 33.1 | 15.1 | 32 |
| 16011-12-12RW | 16012-12-12RW | 1.1/16”X12 | 20 | 12 | O912 | 32.1 | 15.1 | 32 |
| 16011-16-16RW | 16012-16-16RW | 1.5/16”X12 | 25 | 16 | O916 | 35.3 | 15.1 | 38 |
