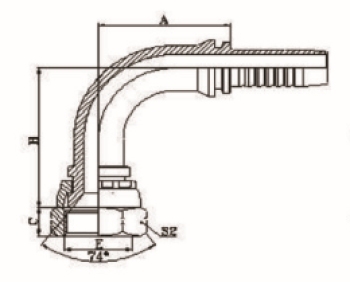

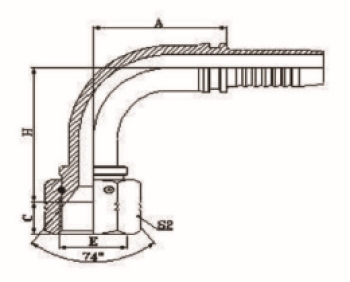

| 代 号 | 螺纹E | 软 管 | 尺 寸 | ||||
| 公称内径 | 标 号 | A | C | H | S2 | ||
| 26791-04-03 | 7/16”X20 | 5 | 03 | 26.5 | 9 | 30.5 | 15 |
| 26791-04-04 | 7/16”X20 | 6 | 04 | 27.5 | 9 | 33 | 15 |
| 26791-05-04 | 1/2”X20 | 6 | 04 | 27.5 | 9.5 | 33.5 | 17 |
| 26791-05-05 | 1/2”X20 | 8 | 05 | 31 | 9.5 | 38.5 | 17 |
| 26791-05-06 | 1/2”X20 | 10 | 06 | 35.3 | 9.5 | 39.3 | 17 |
| 26791-06-04 | 9/16”X18 | 6 | 04 | 27.5 | 10.5 | 34.5 | 19 |
| 26791-06-05 | 9/16”X18 | 8 | 05 | 31 | 10.5 | 39 | 19 |
| 26791-06-06 | 9/16”X18 | 10 | 06 | 33 | 10.5 | 40 | 19 |
| 26791-06-08 | 9/16”X18 | 12 | 08 | 35.8 | 10.5 | 39.8 | 19 |
| 26791-08-06 | 3/4”X16 | 10 | 06 | 33 | 11 | 41.5 | 24 |
| 26791-08-08 | 3/4”X16 | 12 | 08 | 42.5 | 11 | 48.5 | 24 |
| 26791-08-10 | 3/4”X16 | 16 | 10 | 49 | 11 | 47.5 | 24 |
| 26791-10-08 | 7/8”X14 | 12 | 08 | 42.5 | 13 | 49.5 | 27 |
| 26791-10-10 | 7/8”X14 | 16 | 10 | 48.5 | 13 | 54 | 27 |
| 26791-10-12 | 7/8”X14 | 20 | 12 | 50.5 | 13 | 62 | 27 |
| 26791-12-08 | 1.1/16”X12 | 12 | 08 | 42.5 | 15 | 50.5 | 32 |
| 26791-12-10 | 1.1/16”X12 | 16 | 10 | 48.5 | 15 | 55 | 32 |
| 26791-12-12 | 1.1/16”X12 | 20 | 12 | 60.5 | 15 | 63 | 32 |
| 26791-12-16 | 1.1/16”X12 | 25 | 16 | 74 | 15 | 63.5 | 32 |
| 26791-14-12 | 1.3/16”X12 | 20 | 12 | 65.5 | 15 | 63.5 | 36 |
| 26791-16-12 | 1.5/16”X12 | 20 | 12 | 65.5 | 16 | 63.5 | 41 |
| 26791-16-16 | 1.5/16”X12 | 25 | 16 | 66 | 16 | 75.5 | 41 |
| 26791-20-20W | 1.5/8”X12 | 32 | 20 | 91.5 | 17 | 80.5 | 50 |
| 26791-24-20W | 1.7/8”X12 | 32 | 20 | 91.5 | 20 | 80.5 | 55 |
| 26791-24-24W | 1.7/8”X12 | 40 | 24 | 109.4 | 20 | 94 | 55 |
| 26791-32-32T | 2.1/2”X12 | 50 | 32 | 133.1 | 23.5 | 121.8 | 75 |
| 注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为26792-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 26792-XX-XX. |
|||||||
