-超级大力神系列软管

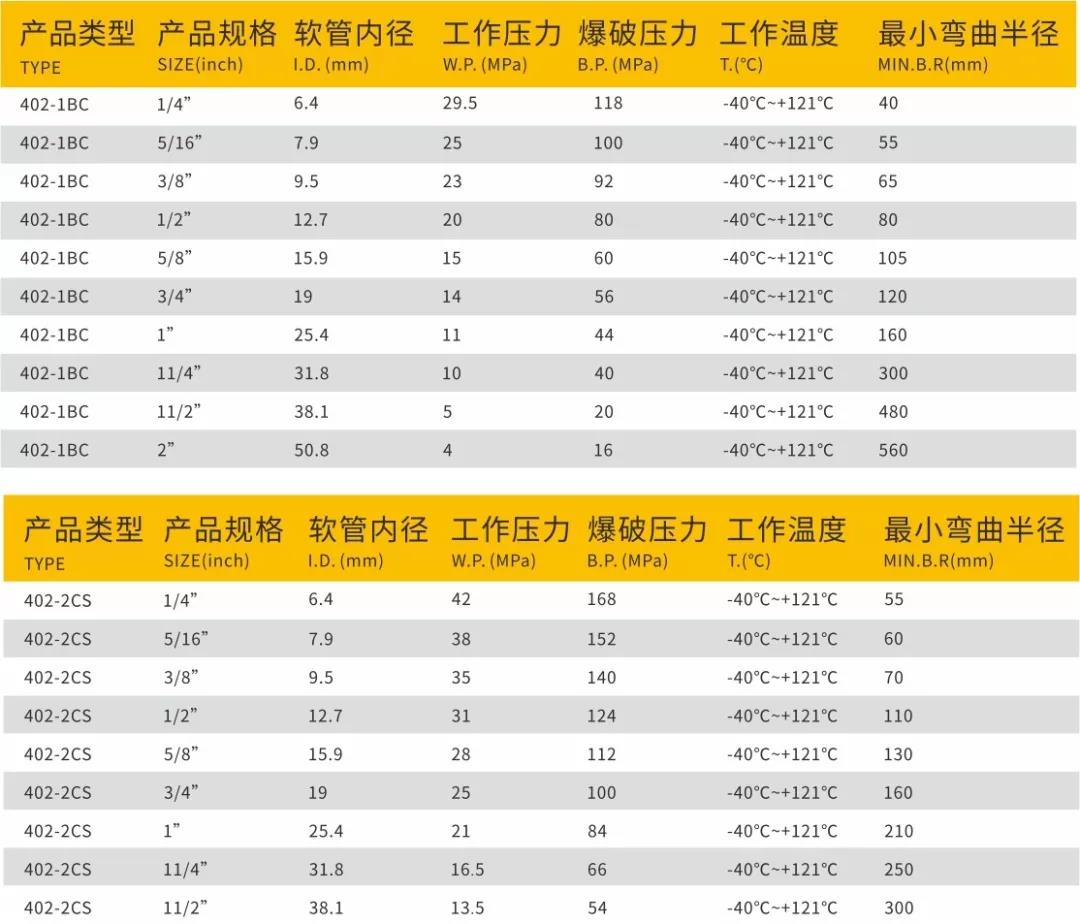

　　超级大力神钢丝编织软管

　　软管结构

　　内胶层：耐热油合成橡胶

　　增强层：特殊高强度超柔钢丝，1层编织脉冲≥30万次;2层编织脉冲≥60万次(符合ISO18752-BC、CS标准)

　　外胶层：以耐老化复合橡胶为原料的免剥外胶黑色光面外胶层

　　特性：长寿命：耐天候5年以上，质保2年(使用利通专供一体式软管接头)，低弯曲：弯曲半径低于SAE/DIN标准30%，高压力：压力高于SAE/DIN标准25%

　　温度范围：-40℃~+121℃(-40℉~+250℉)

　　Hose Construction

　　Inner Tube: hot oil resistant synthetic rubber

　　Reinforcement: special high tensile super flexiblel steel wire, one braid≥300,000 impulse cycles, two braids ≥600,000 impulse cycles(comply with ISO18752-BC、CS standard)

　　Outer Layer: skiving-free black smooth hose cover made of anti-aging synthetic rubber

　　Features: Long service life: weather resistant for more than 5 years and warrantied for 2 years (with Letone specific hose connectors)，Low bending radius: 30% lower than SAE/DIN standards，High pressure: 25% higher than SAE/DIN standards

　　Temperature Range: -40℃~+121℃(-40℉~+250℉)

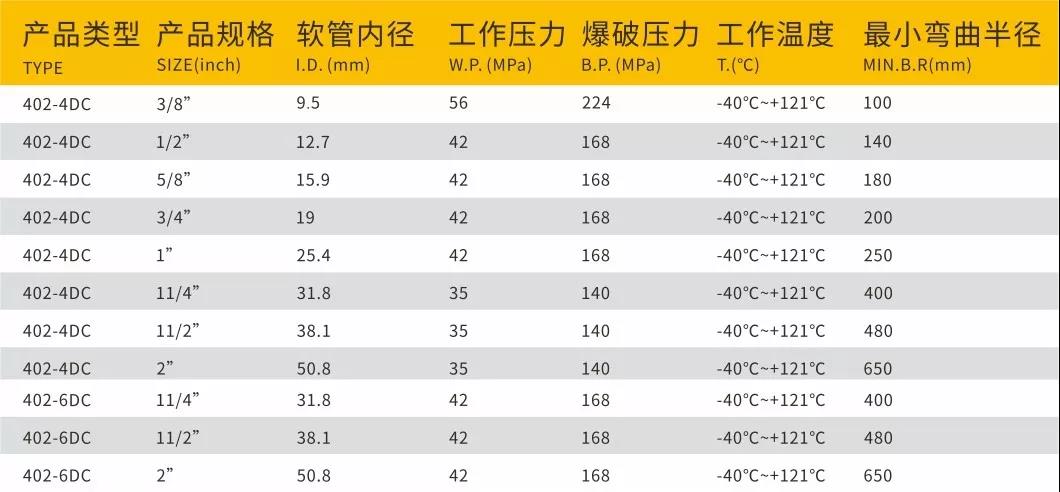

　　超级大力神钢丝缠绕软管

　　软管结构

　　内胶层：耐热油合成橡胶

　　增强层：多层高强度超柔钢丝，4层缠绕脉冲≥100万次(符合ISO18752-DC标准)

　　外胶层：以耐老化复合橡胶为原料的免剥外胶黑色光面/毛面外胶层

　　特性：高压力，低弯曲，长寿命(使用利通专供一体式软管接头,耐天候5年以上，质保2年)

　　温度范围：-40℃~+121℃(-40℉~+250℉)

　　Hose Construction

　　Inner Tube: hot oil resistant synthetic rubber

　　Reinforcement: multispiral high tensile super flexible steel wire, four plies≥ 1 million impulse cycles(comply with ISO18752-DC standard)

　　Outer Layer: skiving-free black smooth/narrow cloth texture hose cover made of anti-aging synthetic rubber

　　Features: High pressure，Low bending radius，Long service life(weather resistant for more than 5 years and warrantied for 2 years with Letone specific hose connectors)

　　Temperature Range: -40℃~+121℃(-40℉~+250℉)
