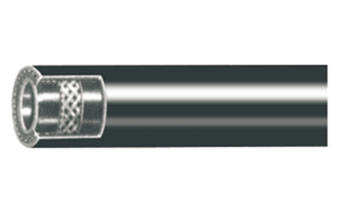

液压橡胶软管
结构：
软管由一层耐油合成橡胶内胶层、一层单根钢丝编织增强层和一层纤维编织
层组成。
应用：
适用于使用石油基液压油，温度范围-40℃~+100℃（-40°F~+212°F）的软管。
DN |
Inches |
I .D (mm) |
O.D(mm) |
Max.W.P |
Min. B.P |
Min. B.R |
|
Min |
Max |
Max |
(Mpa) |
(Mpa) |
(mm) |
||
5 |
3/16 |
4.8 |
5.5 |
13.7 |
21 |
84 |
75 |
6 |
1/4 |
6.4 |
7.2 |
15.3 |
21 |
84 |
85 |
8 |
5/16 |
7.9 |
8.7 |
17.6 |
15.7 |
62.8 |
100 |
10 |
3/8 |
10.3 |
11.1 |
20.0 |
14 |
56 |
115 |
13 |
1/2 |
12.7 |
13.7 |
24.0 |
12.2 |
48.8 |
140 |
16 |
5/8 |
15.9 |
17.0 |
28.0 |
10.5 |
42 |
165 |
22 |
7/8 |
22.2 |
23.3 |
32.2 |
5.6 |
22.4 |
185 |
29 |
1 1/8 |
28.6 |
29.8 |
38.9 |
4.3 |
17.2 |
230 |
35 |
1 3/8 |
34.9 |
36.1 |
45.2 |
3.5 |
14.0 |
265 |
45 |
1 3/4 |
46.0 |
47.2 |
57.6 |
2.4 |
9.6 |
335 |
60 |
2 3/8 |
60.3 |
61.9 |
74.2 |
2.4 |
9.6 |
610 |
76 |
3 |
76.2 |
77.8 |
91.7 |
1.4 |
5.6 |
840 |
