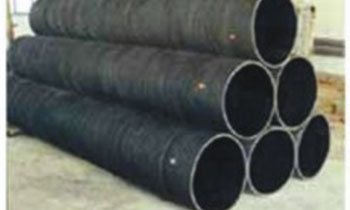

输水、吸水胶管

1.帘线输水胶管

用途：

供采矿、工厂、农林、土木建筑工程常温下输送水及一般中性液体。

特点：

胶管管体轻便，具有良好的柔软性和耐老化性能，胶管的爆破压力不低于

工作压力的三倍。

1.Cord Water Transprtation Rubber Hose

Applicability:Apply to transport water and some neutral liquid in mining,factories,farming,civil

engineering etc.

Character:The body is hard,light and convenient with excellent flexibility and anti aging.The burstre

pressure is at least three times of the working pressure.

2.吸水管

用途：

供工矿、土建及水利工程等吸引常温水及一般中性液体。

特点：

胶管管体有优良的曲挠性，管体坚固，在承受真空度-80KPa（600mm汞柱）的条件下使用时胶管仍

有良好的性能。

2.Water Suction Rubber Hose

Applicability:Apply to suck water and some neutral liquid in mining,civil engineering and water

conservancy projrct etc.

Character:The body is good in flexibility and can perform well under -80KPa(600mm mercury) in a

vacuum.

3.排吸水胶管

用途：

供工矿、工厂、城建及水利工程等吸引或排送常温水及一般中性液体。

特点：

胶管具有承受正压或负压的双重性能，适于较复杂环境条件下使用。

3.Water Discharge and Suction Rubber Hose

Applicability:Apply to discharge and suck water and some neutral liquid in mining,factories urban

construction and water conservancy project etc.

Character:The hose is suitable for more complex conditions with double properties of bearing positive

and negative pressure.

4.高压吸水胶管

用途：

适合基础工程大扬程水泵排水用。

特点：

胶管承压高，变形小，具有很高的抗拉强度，胶层抗撕裂，耐磨耗，耐老化，性能优良。胶管的爆破

压力不低于工作压力的三倍。

4.High Pressure Water Suction Hose

Applicability:Apply to discharge water for the long distant water pump in foundation engineering.

Character:The hose can bear high pressure with excellent properties of high tensile strength,anti aging

and wear proof.The burst pressure is at least three times of the working pressure.

1、帘线输水胶管主要参数

内径 in.mm I.D		工作压力 Mpa(psi) W.P		基本长度 Basic Length		最大长度 Max Length
公称尺寸 Size	公差 Tolerance	Mpa	Kgf/cm2	m	公差 mm Tolerance	m
13	±0.8	0.7	7	20	±200	200
16	±0.8	0.7	7	20	±200	200
19	±0.8	0.7	7	20	±200	200
22	±0.8	0.7	7	20	±200	200
25	±0.8	0.7	7	20	±200	200
32	±1.2	0.7	7	20	±200	200
38	±1.2	0.7	7	20	±200	200
45	±1.2	0.7	7	20	±200	200
51	±1.2	0.7	7	20	±200	200
64	±1.5	0.7	7	20	±200	200
76	±1.5	0.7	7	20	±200	200
89	±1.5	0.7	7	20	±200	200
102	±2.0	0.7	7	20	±200	200
127	±2.0	0.7	7	10	±120	10
152	±2.0	0.7	7	10	±120	10

2、吸水胶管主要参数

内径 in.mm I.D		基本长度 Basic Length
公称尺寸 Size	公差 Tolerance	m	公差 mm Tolerance
25	±0.8	20	±120
32	±1.2	20	±120
38	±1.2	20	±120
45	±1.2	20	±120
51	±1.2	20	±120
64	±1.5	20	±120
76	±1.5	20	±120
89	±1.5	20	±120
102	±1.5	20	±120
127	±2.0	10	±120
152	±2.0	10	±120
203	±2.5	10	±120
254	±2.5	10	±120
305	±3.0	10	±120
357	±3.0	10	±120

3、排吸水胶管主要参数

内径 in.mm I.D		工作压力 Mpa(psi) W.P		基本长度 Basic Length
公称尺寸 Size	公差 Tolerance	Mpa	Kgf/cm2	m	公差 mm Tolerance
51	±1.2	0.6	6	20	±120
64	±1.5	0.6	6	20	±120
76	±1.5	0.6	6	20	±120
89	±1.5	0.6	6	20	±120
102	±2.0	0.6	6	20	±120
127	±2.0	0.6	6	10	±120
152	±2.0	0.6	6	10	±120
203	±2.5	0.6	6	10	±120
254	±2.5	0.6	6	10	±120

4、高压吸水胶管主要参数

内径 in.mm I.D		工作压力 Mpa(psi) W.P		基本长度 Basic Length
公称尺寸 Size	公差 Tolerance	Mpa	Kgf/cm2	m	公差 mm Tolerance
76	±1.5	0.9	9	20	±120
89	±1.5	0.9	9	20	±120
102	±2.0	0.9	9	20	±120
127	±2.0	0.9	9	10	±120
152	±2.0	0.9	9	10	±120
203	±2.5	0.9	9	10	±120
