| 代 号 PART NO. | 法兰型号 | 胶 管 HOSE BORE | 尺寸 DIMENSIONS | |||||

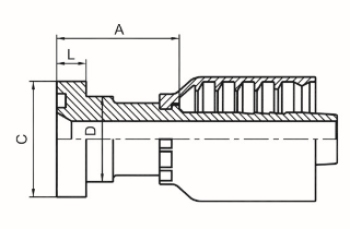

| 编织 BRAIDED | 缠绕 SPIRAL | FLANGE SIZE | 公称内径 DN | 标号DASH | A | C | D | L |
| 88111-10-08RW | 88112-10-08RW | 5/8” | 12 | 08 | 46.5 | 34.2 | 27.8 | 6.7 |
| 88111-10-10RW | 88112-10-10RW | 5/8” | 16 | 10 | 47 | 34.2 | 27.8 | 6.7 |
| 88111-10-12RW | 88112-10-12RW | 5/8” | 20 | 12 | 46 | 34.2 | 27.8 | 6.7 |
