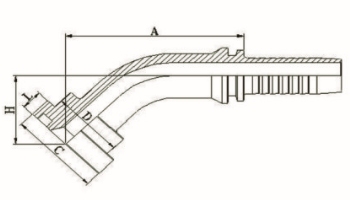

| 代 号 | 法兰型号 | 软 管 | 尺 寸 | |||||
| 公称内径 | 标 号 | A | C | D | H | L | ||
| 87642-08-08 | 1/2” | 12 | 08 | 57.5 | 31.7 | 24 | 25 | 7.75 |
| 87642-08-12 | 1/2” | 20 | 12 | 77 | 31.7 | 24 | 29.6 | 7.75 |
| 87642-12-10 | 3/4” | 16 | 10 | 72.5 | 41.3 | 32 | 28.2 | 8.76 |
| 87642-12-12 | 3/4” | 20 | 12 | 75.5 | 41.3 | 32 | 32 | 8.76 |
| 87642-16-16 | 1” | 25 | 16 | 86 | 47.6 | 38 | 34 | 9.53 |
| 87642-20-20 | 1.1/4” | 32 | 20 | 100 | 54 | 44 | 40 | 10.29 |
| 87642-24-20 | 1.1/2” | 32 | 20 | 105.8 | 63.5 | 51 | 45.1 | 12.57 |
| 87642-24-24 | 1.1/2” | 40 | 24 | 112 | 63.5 | 51 | 46 | 12.57 |
| 87642-32-24 | 2” | 40 | 24 | 125.4 | 79.4 | 67 | 54.7 | 12.57 |
| 87642-32-32 | 2” | 50 | 32 | 143 | 79.4 | 67 | 49 | 12.57 |
| 注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为87642-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87642-XX-XX. |
||||||||
