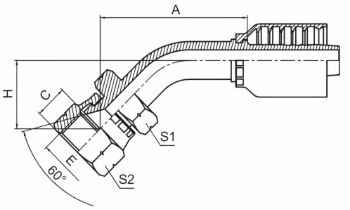

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 尺寸 DIMENSIONS | ||||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREAD E | 公称内径 DN | 标号DASH | A | C | H | S1 | S2 |
| 29641-04-04RW | -- | G1/4”X19 | 6 | 04 | 44.9 | 8 | 21.3 | 19 | 19 |
| 29641-06-06RW | -- | G3/8”X19 | 10 | 06 | 50.2 | 9 | 25 | 22 | 22 |
| 29641-08-08RW | 29642-08-08RW | G1/2”X14 | 12 | 08 | 63.9 | 12 | 27.5 | 27 | 27 |
| 29641-10-10RW | 29642-10-10RW | G5/8”X14 | 16 | 10 | 76.6 | 11.5 | 31.3 | 30 | 30 |
| 29641-12-12RW | 29642-12-12RW | G3/4”X14 | 20 | 12 | 79.9 | 13.5 | 34.1 | 32 | 32 |
| 29641-16-16RW | 29642-16-16RW | G1”X14 | 25 | 16 | 93.2 | 16 | 36.8 | 41 | 41 |
| 29641-20-20WRW | 29642-20-20WRW | G1.1/4”X11 | 32 | 20 | 107 | 18.5 | 45.1 | 50 | 50 |
| 29641-24-24WRW | 29642-24-24WRW | G1.1/2”X11 | 40 | 24 | 122.8 | 19 | 50.1 | 55 | 55 |
| 29641-32-32WRW | 29642-32-32WRW | G2”X11 | 50 | 32 | 149.9 | 23 | 60.1 | 70 | 70 |
