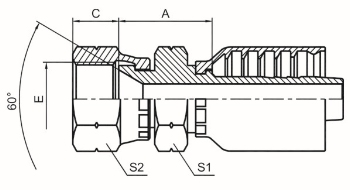

代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 尺寸 DIMENSIONS | |||||
编织 BRAIDED | 缠绕 SPIRAL | THREAD E | 公称内径 DN | 标号DASH | A | C | S1 | S2 |
29611-04-04RW | -- | G1/4”X19 | 6 | 04 | 20.5 | 8 | 19 | 19 |
29611-04-05RW | -- | G1/4”X19 | 8 | 05 | 20.5 | 8 | 19 | 19 |
29611-06-04RW | -- | G3/8”X19 | 6 | 04 | 23.5 | 9 | 22 | 22 |
29611-06-06RW | -- | G3/8”X19 | 10 | 06 | 23 | 9 | 22 | 22 |
29611-08-06RW | -- | G1/2”X14 | 10 | 06 | 24.5 | 12 | 27 | 27 |
29611-08-08RW | 29612-08-08RW | G1/2”X14 | 12 | 08 | 25.5 | 12 | 27 | 27 |
29611-10-10RW | 29612-10-10RW | G5/8”X14 | 16 | 10 | 29.5 | 11.5 | 30 | 30 |
29611-12-10RW | 29612-12-10RW | G3/4”X14 | 16 | 10 | 29.5 | 13.5 | 32 | 32 |
29611-12-12RW | 29612-12-12RW | G3/4”X14 | 20 | 12 | 28.5 | 13.5 | 32 | 32 |
29611-16-16RW | 29612-16-16RW | G1”X14 | 25 | 16 | 33.2 | 16 | 41 | 41 |
29611-20-20WRW | 29612-20-20WRW | G1.1/4”X11 | 32 | 20 | 39.2 | 18.5 | 50 | 50 |
29611-24-24WRW | 29612-24-24WRW | G1.1/2”X11 | 40 | 24 | 41.5 | 19 | 55 | 55 |
29611-32-32WRW | 29612-32-32WRW | G2”X11 | 50 | 32 | 49 | 23 | 70 | 70 |
