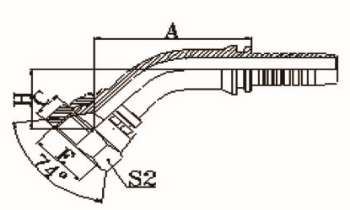

| 代 号 | 螺纹E | 软 管 | 尺 寸 | ||||
| 公称内径 | 标 号 | A | C | H | S2 | ||
| 20741-14-04 | M14X1.5 | 6 | 04 | 38 | 8.5 | 19 | 19 |
| 20741-16-05 | M16X1.5 | 8 | 05 | 42.3 | 8 | 20.7 | 22 |
| 20741-18-06 | M18X1.5 | 10 | 06 | 45.5 | 10 | 22 | 24 |
| 20741-22-08 | M22X1.5 | 12 | 08 | 57.5 | 10 | 24.5 | 27 |
| 20741-27-10 | M27X1.5 | 16 | 10 | 60 | 11 | 26.5 | 32 |
| 20741-30-12 | M30X1.5 | 20 | 12 | 74 | 11 | 30 | 36 |
| 20741-33-12 | M33X2 | 20 | 12 | 77.4 | 13 | 30 | 41 |
| 20741-33-16 | M33X2 | 25 | 16 | 85 | 13 | 30.8 | 41 |
| 20741-36-14 | M36X2 | 22 | 14 | 79.8 | 14 | 29.6 | 4 |
| 20741-36-16 | M36X2 | 25 | 16 | 85.7 | 14 | 31.5 | 41 |
| 20741-39-16 | M39X2 | 25 | 16 | 85 | 14 | 33 | 46 |
| 20741-45-20W | M45X2 | 32 | 20 | 97 | 15 | 36.2 | 55 |
| 20741-52-24W | M52X2 | 40 | 24 | 115.3 | 17 | 40.6 | 60 |
| 注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为20742-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 20742-XX-XX. |
|||||||
