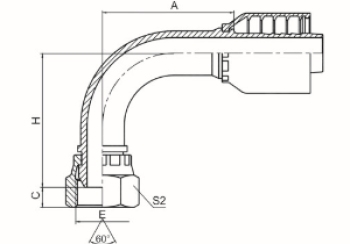

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | A | C | H | S2 |
| 20691-12-04RW | -- | M12X1.5 | 6 | 04 | 31.5 | 4.5 | 37 | 17 |
| 20691-14-04TRW | -- | M14X1.5 | 6 | 04 | 31.5 | 5 | 34.5 | 19 |
| 20691-16-05TRW | -- | M16X1.5 | 8 | 05 | 34.5 | 6 | 38 | 22 |
| 20691-16-06RW | -- | M16X1.5 | 10 | 06 | 36.3 | 5.5 | 42.8 | 22 |
| 20691-18-06TRW | -- | M18X1.5 | 10 | 06 | 36.3 | 5.5 | 41.8 | 22 |
| 20691-20-08RW | 20692-20-08RW | M20X1.5 | 12 | 08 | 42.5 | 6.5 | 51.5 | 27 |
| 20691-22-08TRW | 20692-22-08TRW | M22X1.5 | 12 | 08 | 42.5 | 6 | 47.5 | 27 |
| 20691-24-10RW | 20692-24-10RW | M24X1.5 | 16 | 10 | 57 | 6.5 | 57 | 30 |
| 20691-26-10TRW | 20692-26-10TRW | M26X1.5 | 16 | 10 | 57 | 6 | 55 | 32 |
| 20691-27-10DTRW | 20692-27-10DTRW | M27X1.5 | 16 | 10 | 57 | 6 | 55 | 32 |
| 20691-27-10TRW | 20692-27-10TRW | M27X2 | 16 | 10 | 57 | 8 | 55 | 32 |
| 20691-30-10DTRW | 20692-30-10DTRW | M30X1.5 | 16 | 10 | 57 | 5.5 | 56 | 36 |
| 20691-30-12DTRW | 20692-30-12DTRW | M30X1.5 | 20 | 12 | 63.2 | 5.5 | 62.5 | 36 |
| 20691-30-12TRW | 20692-30-12TRW | M30X2 | 20 | 12 | 63.2 | 5.5 | 62.5 | 36 |
| 20691-36-16TRW | 20692-36-16TRW | M36X2 | 25 | 16 | 78.9 | 6.5 | 72.5 | 41 |
| 20691-39-16TRW | 20692-39-16TRW | M39X2 | 25 | 16 | 78.9 | 6.5 | 74.5 | 46 |
| 20691-45-20TRW | 20692-45-20TRW | M45X2 | 32 | 20 | 92.7 | 8.5 | 85.5 | 55 |
| 20691-52-24TRW | 20692-52-24TRW | M52X2 | 40 | 24 | 111.4 | 10 | 99.5 | 60 |
