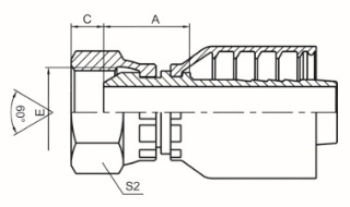

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 尺寸 DIMENSIONS | ||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | A | C | S2 |
| 20611-12-04RW | -- | M12X1.5 | 6 | 04 | 20 | 4.5 | 17 |
| 20611-14-04TRW | -- | M14X1.5 | 6 | 04 | 17 | 5 | 19 |
| 20611-16-05TRW | -- | M16X1.5 | 8 | 05 | 17.5 | 6 | 22 |
| 20611-16-06RW | -- | M16X1.5 | 10 | 06 | 20.5 | 5.5 | 22 |
| 20611-18-06TRW | -- | M18X1.5 | 10 | 06 | 18.5 | 5.5 | 22 |
| 20611-20-08RW | 20612-20-08RW | M20X1.5 | 12 | 08 | 24 | 6.5 | 27 |
| 20611-22-08TRW | 20612-22-08TRW | M22X1.5 | 12 | 08 | 20 | 6 | 27 |
| 20611-24-10RW | 20612-24-10RW | M24X1.5 | 16 | 10 | 25.5 | 6.5 | 30 |
| 20611-26-10TRW | 20612-26-10TRW | M26X1.5 | 16 | 10 | 23.5 | 6 | 32 |
| 20611-27-10DTRW | 20612-27-10DTRW | M27X1.5 | 16 | 10 | 23.5 | 6 | 32 |
| 20611-27-10TRW | 20612-27-10TRW | M27X2 | 16 | 10 | 23.5 | 8 | 32 |
| 20611-30-10DTRW | 20612-30-10DTRW | M30X1.5 | 16 | 10 | 24.5 | 5.5 | 36 |
| 20611-30-12DTRW | 20612-30-12DTRW | M30X1.5 | 20 | 12 | 23.5 | 5.5 | 36 |
| 20611-30-12TRW | 20612-30-12TRW | M30X2 | 20 | 12 | 23.5 | 5.5 | 36 |
| 20611-36-16TRW | 20612-36-16TRW | M36X2 | 25 | 16 | 28.2 | 6.5 | 41 |
| 20611-39-16TRW | 20612-39-16TRW | M39X2 | 25 | 16 | 30.2 | 6.5 | 46 |
| 20611-45-20TRW | 20612-45-20TRW | M45X2 | 32 | 20 | 30.2 | 8.5 | 55 |
| 20611-52-24TRW | 20612-52-24TRW | M52X2 | 40 | 24 | 31.5 | 10 | 60 |
