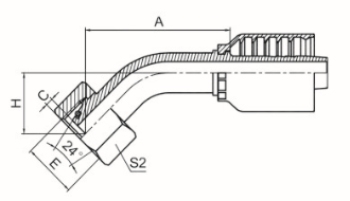

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 管子外径 | O形圈 | 尺寸 DIMENSIONS | |||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | TUBE O.D. | O RING | A | C | H | S2 |
| 20541-14-04TRW | -- | M14X1.5 | 6 | 04 | 6 | O04.5X1.5 | 44.1 | 1.1 | 20.5 | 17 |
| 20541-16-04TRW | -- | M16X1.5 | 6 | 04 | 8 | O06.5X1.5 | 44.5 | 1.5 | 20.9 | 19 |
| 20541-16-05TRW | -- | M16X1.5 | 8 | 05 | 8 | O06.5X1.5 | 46.6 | 1.5 | 21.8 | 19 |
| 20541-18-04TRW | -- | M18X1.5 | 6 | 04 | 10 | O08.0X1.5 | 45.6 | 1.5 | 22 | 22 |
| 20541-18-06TRW | -- | M18X1.5 | 10 | 06 | 10 | O08.0X1.5 | 48.8 | 1.5 | 23.6 | 22 |
| 20541-20-06TRW | -- | M20X1.5 | 10 | 06 | 12 | O10.0X1.5 | 49.1 | 2.5 | 23.9 | 24 |
| 20541-20-08WRW | 20542-20-08WRW | M20X1.5 | 12 | 08 | 12 | O10.0X1.5 | 65 | 2.5 | 28.6 | 24 |
| 20541-22-06TRW | -- | M22X1.5 | 10 | 06 | 14 | O11.0X2.0 | 49.1 | 2.5 | 23.9 | 27 |
| 20541-22-08TRW | 20542-22-08TRW | M22X1.5 | 12 | 08 | 14 | O11.0X2.0 | 31.8 | 2.5 | 25.4 | 27 |
| 20541-24-06TRW | -- | M24X1.5 | 10 | 06 | 16 | O13.0X2.0 | 49.1 | 3 | 23.9 | 30 |
| 20541-24-08TRW | 20542-24-08TRW | M24X1.5 | 12 | 08 | 16 | O13.0X2.0 | 61.8 | 3 | 25.4 | 30 |
| 20541-30-10TRW | 20542-30-10TRW | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 74.8 | 2.5 | 29.5 | 36 |
| 20541-30-12TRW | 20542-30-12TRW | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 78.1 | 2.5 | 32.3 | 36 |
| 20541-36-12TRW | 20542-36-12TRW | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 78.4 | 3 | 32.6 | 46 |
| 20541-42-12TRW | 20542-42-12TRW | M42X2 | 20 | 12 | 30 | O25.3X2.4 | 79.6 | 4 | 33.8 | 50 |
| 20541-42-16TRW | 20542-42-16TRW | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 91.8 | 4 | 34.5 | 50 |
| 20541-52-20TRW | 20542-52-20TRW | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 101.7 | 4.5 | 39.8 | 60 |
| 20541-52-24TRW | 20542-52-24TRW | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 116.4 | 4.5 | 43.7 | 60 |
