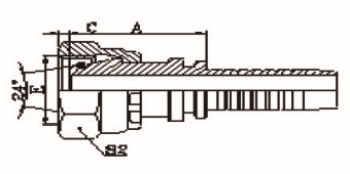

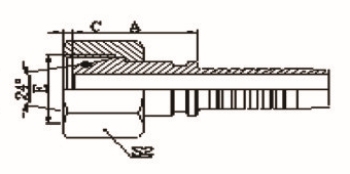

| 代 号 | 螺纹E | 软 管 | 管子外径 | O形圈 | 尺寸 | |||
| 公称内径 | 标 号 | A | C | S1 | ||||
| 20511-14-04 | M16X1.5 | 6 | 04 | 6 | O04.5X1.5 | 27.4 | 1.5 | 19 |
| 20511-16-04 | M16X1.5 | 6 | 04 | 8 | O06.5X1.5 | 27.5 | 1.5 | 22 |
| 20511-16-05 | M16X1.5 | 8 | 05 | 8 | O06.5X1.5 | 27.5 | 1.5 | 22 |
| 20511-18-04T | M18X1.5 | 6 | 04 | 10 | O08.0X1.5 | 26 | 1.5 | 22 |
| 20511-18-06 | M18X1.5 | 10 | 06 | 10 | O08.0X1.5 | 29.5 | 2 | 24 |
| 20511-20-06T | M20X1.5 | 10 | 06 | 12 | O10.0X1.5 | 27.5 | 2.5 | 24 |
| 20511-20-08 | M20X1.5 | 12 | 08 | 12 | O10.0X1.5 | 31.5 | 2.5 | 27 |
| 20511-22-06T | M22X1.5 | 10 | 06 | 14 | O11.0X2.0 | 28.5 | 3 | 27 |
| 20511-22-08 | M22X1.5 | 12 | 08 | 14 | O11.0X2.0 | 32.5 | 2.5 | 27 |
| 20511-24-06T | M24X1.5 | 10 | 06 | 16 | O13.0X2.0 | 27 | 3 | 30 |
| 20511-24-08T | M24X1.5 | 12 | 08 | 16 | O13.0X2.0 | 30 | 3 | 30 |
| 20511-30-10T | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 33.5 | 2.5 | 36 |
| 20511-30-12 | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 37 | 3 | 36 |
| 20511-36-12T | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 37 | 3.2 | 46 |
| 20511-36-14T | M36X2 | 22 | 14 | 25 | O20.3X2.4 | 37 | 3.2 | 46 |
| 20511-42-12T | M42X2 | 20 | 12 | 30 | O25.3X2.4 | 37.5 | 3.9 | 50 |
| 20511-42-16T | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 41 | 3.9 | 50 |
| 20511-52-20T | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 44 | 4.5 | 60 |
| 20511-52-24T | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 44 | 4.5 | 60 |
| 注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为20512-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 20512-XX-XX. |
||||||||
