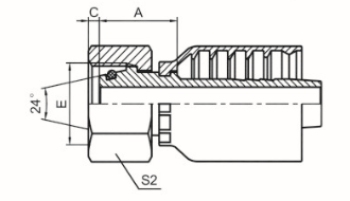

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 管子外径 | O形圈 | 尺寸 DIMENSIONS | ||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | TUBE O.D. | O RING | A | C | S1 |
| 20511-14-04TRW | -- | M14X1.5 | 6 | 04 | 6 | O04.5X1.5 | 19.4 | 1.1 | 17 |
| 20511-16-04TRW | -- | M16X1.5 | 6 | 04 | 8 | O06.5X1.5 | 20 | 1.5 | 19 |
| 20511-16-05TRW | -- | M16X1.5 | 8 | 05 | 8 | O06.5X1.5 | 20 | 1.5 | 19 |
| 20511-18-04TRW | -- | M18X1.5 | 6 | 04 | 10 | O08.0X1.5 | 21.5 | 1.5 | 22 |
| 20511-18-06TRW | -- | M18X1.5 | 10 | 06 | 10 | O08.0X1.5 | 21 | 1.5 | 22 |
| 20511-20-06TRW | M20X1.5 | 10 | 06 | 12 | O10.0X1.5 | 21.5 | 2.5 | 24 | |
| 20511-20-08WRW | 20512-20-08WRW | M20X1.5 | 12 | 08 | 12 | O10.0X1.5 | 27 | 2.5 | 24 |
| 20511-22-06TRW | -- | M22X1.5 | 10 | 06 | 14 | O11.0X1.5 | 21.5 | 2.5 | 27 |
| 20511-22-08TRW | 20512-22-08TRW | M22X1.5 | 12 | 08 | 14 | O11.0X1.5 | 22.5 | 2.5 | 27 |
| 20511-24-06TRW | -- | M24X1.5 | 10 | 06 | 16 | O13.0X1.5 | 21.5 | 3 | 30 |
| 20511-24-08TRW | 20512-24-08TRW | M24X1.5 | 12 | 08 | 16 | O13.0X1.5 | 22.5 | 3 | 30 |
| 20511-30-10TRW | 20512-30-10TRW | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 27 | 2.5 | 36 |
| 20511-30-12TRW | 20512-30-12TRW | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 26 | 2.5 | 36 |
| 20511-36-12TRW | 20512-36-12TRW | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 26.3 | 3 | 46 |
| 20511-42-12TRW | 20512-42-12TRW | M42X2 | 20 | 12 | 30 | O25.3X2.4 | 28.1 | 4 | 50 |
| 20511-42-16TRW | 20512-42-13TRW | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 31.3 | 4 | 50 |
| 20511-52-20TRW | 20512-52-20TRW | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 31.7 | 4.5 | 60 |
| 20511-52-24TRW | 20512-52-24TRW | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 32.5 | 4.5 | 60 |
