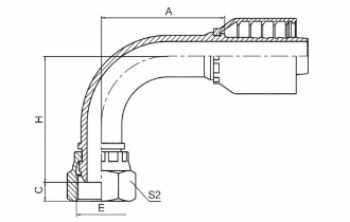

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | A | C | H | S2 |
| 20191-10-04RW | -- | M10X1 | 6 | 04 | 31.5 | 2.5 | 37 | 14 |
| 20191-12-04RW | -- | M12X1.5 | 6 | 04 | 31.5 | 4 | 37.5 | 17 |
| 20191-12-05RW | -- | M12X1.5 | 8 | 05 | 34.5 | 4 | 40.5 | 17 |
| 20191-14-04TRW | -- | M14X1.5 | 6 | 04 | 31.5 | 4 | 36 | 19 |
| 20191-14-05RW | -- | M14X1.5 | 8 | 05 | 34.5 | 4.5 | 41 | 19 |
| 20191-16-04TRW | -- | M16X1.5 | 6 | 04 | 31.5 | 5 | 36 | 22 |
| 20191-16-05TRW | -- | M16X1.5 | 8 | 05 | 34.5 | 5 | 39 | 22 |
| 20191-16-06RW | -- | M16X1.5 | 10 | 06 | 36.3 | 4.5 | 43.8 | 22 |
| 20191-18-05TRW | -- | M18X1.5 | 8 | 05 | 34.5 | 4 | 41 | 22 |
| 20191-18-06TRW | -- | M18X1.5 | 10 | 06 | 36.3 | 4 | 43.3 | 22 |
| 20191-18-08RW | 20192-18-08RW | M18X1.5 | 12 | 08 | 42.5 | 4 | 51.5 | 24 |
| 20191-20-06TRW | -- | M20X1.5 | 10 | 06 | 36.3 | 5.5 | 43.8 | 24 |
| 20191-20-08RW | 20192-20-08RW | M20X1.5 | 12 | 08 | 42.5 | 5.5 | 52 | 27 |
| 20191-22-06TRW | 20192-22-06TRW | M22X1.5 | 10 | 06 | 36.3 | 5 | 44.3 | 27 |
| 20191-22-08TRW | 20192-22-08TRW | M22X1.5 | 12 | 08 | 42.5 | 5 | 49.5 | 27 |
| 20191-22-10RW | 20192-22-10RW | M22X1.5 | 16 | 10 | 57 | 5 | 57.5 | 27 |
| 20191-24-10RW | 20192-24-10RW | M24X1.5 | 16 | 10 | 57 | 5 | 58.5 | 30 |
| 20191-24-08TRW | 20192-24-08TRW | M24X1.5 | 12 | 08 | 42.5 | 5.5 | 50 | 30 |
| 20191-27-08DTRW | 20192-27-08DTRW | M27X1.5 | 12 | 08 | 42.5 | 5.5 | 51 | 32 |
| 20191-27-10DTRW | 20192-27-10DTRW | M27X1.5 | 16 | 10 | 57 | 5.5 | 55.5 | 32 |
| 20191-27-12DRW | 20192-27-12DRW | M27X1.5 | 20 | 12 | 63.2 | 5.5 | 66 | 32 |
| 20191-27-10TRW | 20192-27-10TRW | M27X2 | 16 | 10 | 57 | 7 | 55.5 | 32 |
| 20191-30-12DTRW | 20192-30-12DTRW | M30X1.5 | 20 | 12 | 63.2 | 6 | 62.5 | 36 |
| 20191-30-12TRW | 20192-30-12TRW | M30X2 | 20 | 12 | 63.2 | 7 | 62.5 | 41 |
| 20191-36-12TRW | 20192-36-12TRW | M36X2 | 20 | 12 | 63.2 | 8 | 63.5 | 41 |
| 20191-39-16TRW | 20192-39-16TRW | M39X2 | 25 | 16 | 78.9 | 7 | 74 | 46 |
| 20191-42-16TRW | 20192-42-16TRW | M42X2 | 25 | 16 | 78.9 | 8.5 | 74 | 50 |
| 20191-45-20TRW | 20192-45-20TRW | M45X2 | 32 | 20 | 92.7 | 8.5 | 85.5 | 55 |
| 20191-52-20TRW | 20192-52-20TRW | M52X2 | 32 | 20 | 92.7 | 9 | 87 | 60 |
| 20191-52-24TRW | 20192-52-24TRW | M52X2 | 40 | 24 | 111.4 | 9 | 100.5 | 60 |
| 20191-64-32TRW | 20192-64-32TRW | M64X2 | 50 | 32 | 138.6 | 14 | 122.8 | 75 |
