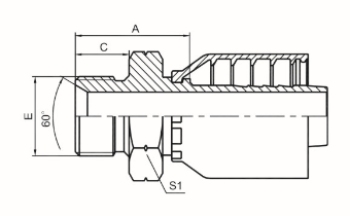

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 尺寸 DIMENSIONS | ||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | A | C | S1 |
| 12611A-02-04RW | -- | G1/8”X28 | 6 | 04 | 22 | 10 | 14 |
| 12611A-04-04RW | -- | G1/4”X28 | 6 | 04 | 24 | 12 | 19 |
| 12611A-04-05RW | -- | G1/4”X28 | 8 | 05 | 24 | 12 | 19 |
| 12611A-04-06RW | -- | G1/4”X28 | 10 | 06 | 23.5 | 12 | 19 |
| 12611A-06-04RW | -- | G3/8”X19 | 6 | 04 | 27.5 | 13.5 | 22 |
| 12611A-06-05RW | -- | G3/8”X19 | 8 | 05 | 27.5 | 13.5 | 22 |
| 12611A-06-06RW | -- | G3/8”X19 | 10 | 06 | 27 | 13.5 | 22 |
| 12611A-06-08RW | 12612A-06-08RW | G3/8”X19 | 12 | 08 | 28 | 13.5 | 22 |
| 12611A-08-06RW | -- | G1/2”X14 | 10 | 06 | 31.5 | 16 | 27 |
| 12611A-08-08RW | 12612A-08-08RW | G1/2”X14 | 12 | 08 | 32.5 | 16 | 27 |
| 12611A-08-10RW | 12612A-08-10RW | G1/2”X14 | 10 | 06 | 31.5 | 16 | 27 |
| 12611A-08-12RW | 12612A-08-12RW | G1/2”X14 | 20 | 12 | 32 | 16 | 27 |
| 12611A-12-08RW | 12612A-12-08RW | G3/4”X14 | 12 | 08 | 36 | 18.5 | 32 |
| 12611A-12-10RW | 12612A-12-10RW | G3/4”X14 | 16 | 10 | 36.5 | 18.5 | 32 |
| 12611A-12-12RW | 12612A-12-12RW | G3/4”X14 | 20 | 12 | 35.5 | 18.5 | 32 |
| 12611A-12-16RW | 12612A-12-16RW | G3/4”X14 | 25 | 16 | 38.7 | 18.5 | 32 |
| 12611A-16-12RW | 12612A-16-12RW | G1”X11 | 20 | 12 | 39.5 | 20.5 | 41 |
| 12611A-16-16RW | 12612A-16-16RW | G1”X11 | 25 | 16 | 42.7 | 20.5 | 41 |
| 12611A-20-20RW | 12612A-20-20RW | G1.1/4”X11 | 32 | 20 | 44.7 | 20.5 | 50 |
| 12611A-24-24RW | 12612A-24-24RW | G1.1/2”X11 | 40 | 24 | 48 | 23 | 55 |
| 12611A-32-24RW | 12612A-32-24RW | G2”X11 | 40 | 24 | 52.5 | 25.5 | 70 |
| 12611A-32-32RW | 12612A-32-32RW | G2”X11 | 50 | 32 | 56 | 25.5 | 70 |
