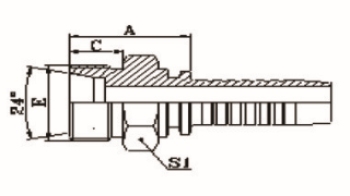

| 代 号 | 螺纹E | 软 管 | 管子外径 | 尺寸 | |||
| 公称内径 | 标 号 | A | C | S2 | |||
| 10411-12-04 | M12X1.5 | 6 | 04 | 6 | 22 | 10 | 12 |
| 10411-14-04 | M14X1.5 | 6 | 04 | 8 | 22 | 10 | 14 |
| 10411-14-05 | M14X1.5 | 8 | 05 | 8 | 22 | 10 | 14 |
| 10411-16-04 | M16X1.5 | 6 | 04 | 10 | 23.5 | 11 | 17 |
| 10411-16-05 | M16X1.5 | 8 | 05 | 10 | 23.5 | 11 | 17 |
| 10411-16-06 | M16X1.5 | 10 | 06 | 10 | 23.5 | 11 | 17 |
| 10411-18-05 | M18X1.5 | 8 | 05 | 12 | 24 | 11 | 19 |
| 10411-18-06 | M18X1.5 | 10 | 06 | 12 | 24 | 11 | 19 |
| 10411-22-06 | M22X1.5 | 10 | 06 | 15 | 26.5 | 12 | 24 |
| 10411-22-08 | M22X1.5 | 12 | 08 | 15 | 27 | 12 | 24 |
| 10411-26-08 | M26X1.5 | 12 | 08 | 18 | 28.5 | 12 | 27 |
| 10411-26-10 | M26X1.5 | 16 | 10 | 18 | 29.5 | 12 | 27 |
| 10411-27-10 | M27X1.5 | 16 | 10 | 18 | 32.5 | 14 | 30 |
| 10411-30-10 | M30X2 | 16 | 10 | 22 | 33.5 | 14 | 32 |
| 10411-30-12 | M30X2 | 20 | 12 | 22 | 33.5 | 14 | 32 |
| 10411-36-16 | M36X2 | 25 | 16 | 28 | 36 | 14 | 38 |
| 10411-45-20 | M45X2 | 32 | 20 | 35 | 40 | 16 | 46 |
| 10411-52-24 | M52X2 | 40 | 24 | 42 | 43 | 16 | 55 |
| 注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为10412-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 10412-XX-XX. |
|||||||
